Rear Brake Modifications

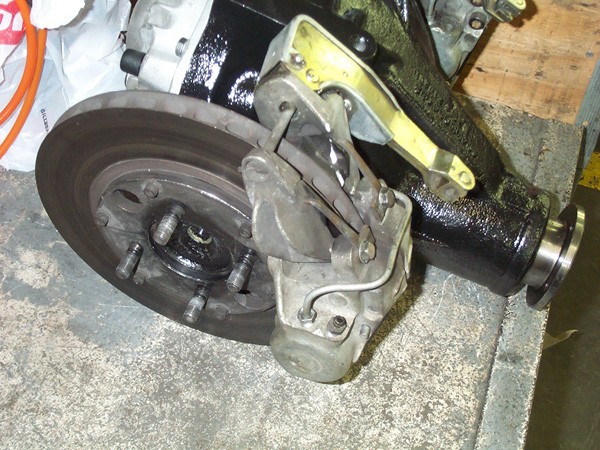

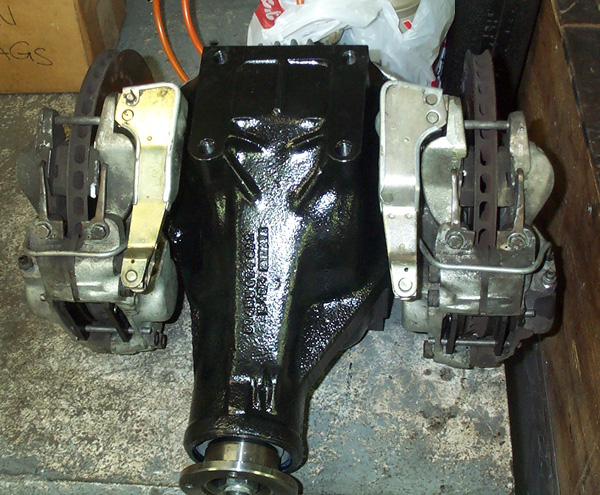

Assembled and ready to go in the XJS. These calipers are out of a Daimler Limo as the pistons are about 50% larger for improved brake force.Otherwise they fit as stock.Rotor uses a aluminum hat to mount it to the axle

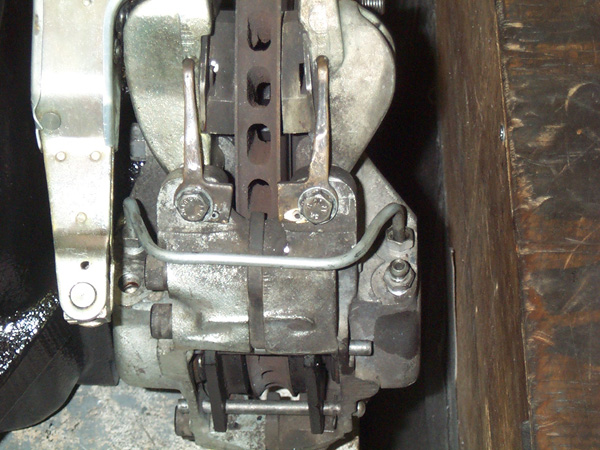

Note the spacers and the handbrake return springs cut in two and pinned in place.

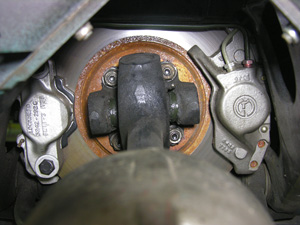

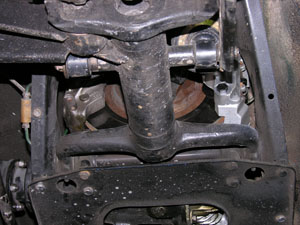

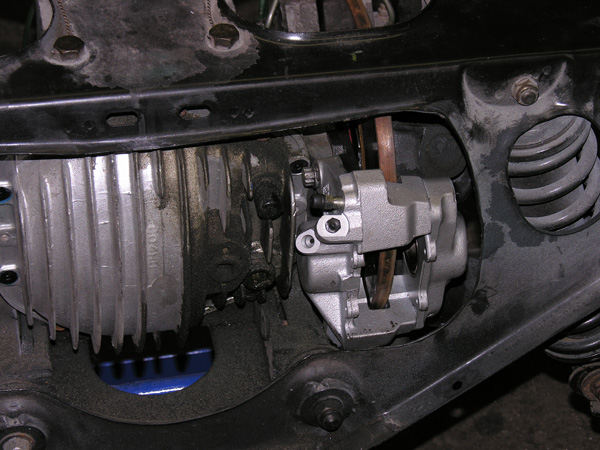

As installed in the XKE using solid rotor and two calipers per side. View from the rear of the XKE with one of the Rover calipers in place.
